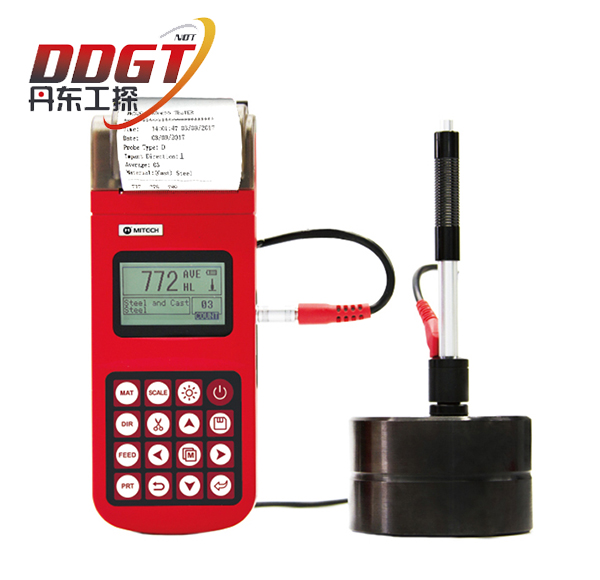

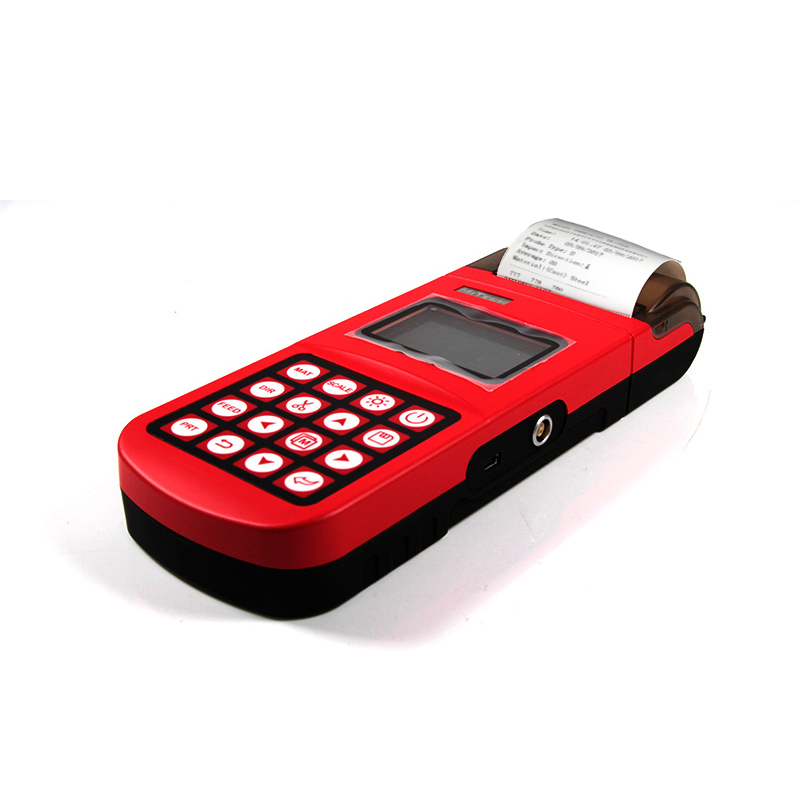

MH320 Portable Leeb Hardness Tester

Product Overview

MH320 portable Leeb hardness tester is based on Leeb hardness measurement principle, it can be quickly and easily used for on-site testing hardness of metallic materials and support free conversion between Leeb, Brinell, Rockwell hardness and other scales. It uses 128 × 64 dot matrix LCD screen, rich information, intuitive, stable performance and integrated high-speed thermal printer, which enables printing with instant measurement results.It can be widely used in metal processing and manufacturing, special equipment, permanent component failure analysis, inspection and other fields. It is particularly suitable for large parts and non-removable part of the on-site hardness testing. It is to improve production efficiency and pass rate and is a wise choice to save the cost of production.

Technical Specifications

Error and repeatability of displayed value showed in Table below.

No.

Type of impact device

Hardness value of Leeb standard hardness block

Error of displayed value

Repeatability

1

D

760±30HLD

530±40HLD

±6 HLD

±10 HLD

6 HLD

10 HLD

2

DC

760±30HLDC

530±40HLDC

±6 HLDC

±10 HLDC

6 HLD

10 HLD

3

DL

878±30HLDL

736±40HLDL

±12 HLDL

12 HLDL

4

D+15

766±30HLD+15

544±40HLD+15

±12 HLD+15

12 HLD+15

5

G

590±40HLG

500±40HLG

±12 HLG

12 HLG

6

E

725±30HLE

508±40HLE

±12 HLE

12 HLE

7

C

822±30HLC

590±40HLC

±12 HLC

12 HLC



Measuring rangeHLD170960HLD

Impact direction: vertically downward, oblique, horizontal, vertical upward, automatically identify

Material: steel and cast steelcold work tool steel, stainless steel, Grey cast iron,Nodular cast iron, cast aluminum alloys,BRASS(copper-zinc alloys),BRONZE(copper-aluminum/tin alloys),Wrought copper alloys

Hardness ScaleHLHBHRBHRCHRAHVHS

Paper Roll: Width (57.5±0.5)mm, diameter: 30mm, imported paper to ensure long-term data storage

Display128X64 dots,adjustable backlight

Data memory500 measurement series.(relative to impact times 321)

Battery : 6V,(Ni-MH battery pack)

Power Supply: 9V/500mA

Recharge Time: 2.5~3.5hours

Standby Time: About 150hours (with default brightness)

Communication interfaceUSB1.1

Features

Based on the principle of Leeb hardness testing theory. It can measure many metallic material

One main unit can match to 6 impact devices

Support Steel ,when using D/DC sensor to test steel,it can show HB directly,no need to check manually.

High-contrast Segment LCD easy to use

Software calibration automatically.

500 groups (impact times 32 ~ 1) hardness measurements, each set of data includes single testing value, average value, measurement date / time, impact direction, frequency, material, hardness, and other information.

Built-in Ni-MH , it can work for not less than 150 hours; automatic screen standby, automatic sleep, automatic shutdown and other power-saving features

Real-time display the remaining battery power, charging progress is displayed while charging.

USB interface can do transmission measurements, the measured value storage management, statistical analysis of the measured value, the measured value of the print report and batch set the instrument parameters through the PC data-pro software to meet the higher demand for quality assurance and management.

Small size, portable, stable and reliable performance, suitable for harsh environment field operations, prevent from vibration, shock and electromagnetic interference.

Dimension:212mm×80mm×32mm

Application fields

Die cavity of molds

Bearings and other parts

Failure analysis of pressure vessel, steam generator and other equipment

Heavy work piece

The installed machinery and permanently assembled parts

Testing surface of a small hollow space

Requirements of formal original record for test results

Material identification In the warehouse of metallic materials

Rapid testing in large range and multi-measuring areas for large-scale work piece

Application conditions

Surface temperature can’t be overheat less than 120°

Surface roughness should not to be too large, otherwise it will cause errors. The surface of the work piece must be exposed metallic luster, smoothing and polish without Oil

The specimens with 2-5kg or thin walled specimens overhangs should be supported with some object in order to avoid the specimen deformation ,bending and movement  caused by impact for medium-sized work piece ,it shall be placed on a flat and hard surface, the sample must be placed absolutely smoothly,without any shake, for heavy samples more than 5kg, it can be measured dire without any support.

Portable Leeb hardness tester has strict requirements for sample thickness , the minimum thickness shall comply with regulatory a(see instructions).

For work piece with hardened layer on surface,the depth of hardened layer should conform to regulatory

For lighter parts, please make it tightly coupled with support ,two coupled surface layer should must be conform flat and to smooth,  the coupling gel should not to be too much. The direction of the test shall be perpendicular  to the coupling plate; if the work piece is a large plate, pole or bending material , even the weight and thickness is okay ,it may still cause deformation and instability, resulting in test values error, it should be reinforced or supported at the back of the test points.

Magnetic of work piece should be less than 30 gauss.

For artifact-surface : The work piece surface is preferably flat. When the curvature radius R of measured surface is less than 30mm,the.work pieces should be tested with the small support ring the shaped support rings.

Working Conditions

Working temperature:-10~+50,

Storage temperature -30℃ ~ + 600℃,

Relative humidity : 90%,

The surrounding environment should avoid of vibration, strong magnetic field, corrosive  medium and heavy dust.

Impact Devices

D:     Stand configuration,for normal testing

DC:      Test hole or hollow cylindrical

DL:      Test slender narrow groove or hole

D+I5:     Test groove or concave surface

G:        Test large, thick, heavy and rough surface steel

C:      Test small, light, thin parts and surface of hardened layer

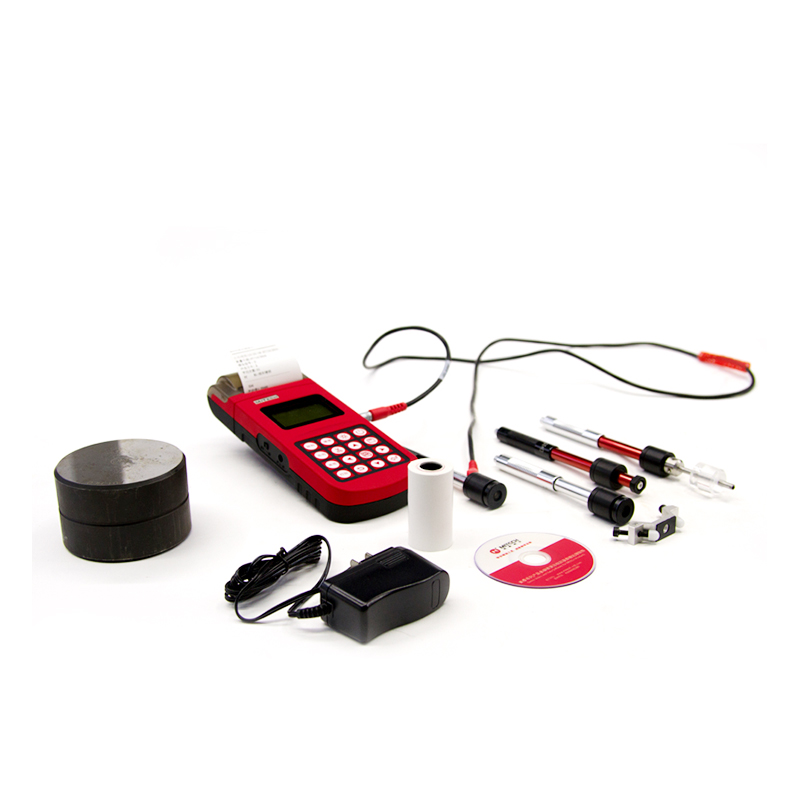

Configuration


No.

Item

Quantity

Remarks

Standard Configuration

1

Main unit

1


2

D type impact device

1


3

Standard test block

1


4

Power adapter

1


5

Cleaning brush (A)

1


6

Small support ring

1


7

Ni-MH battery pack

1

In the product

8

 Printer paper roll

1


9

Manual

1


10

ABS instrument package case

1


Optional Configuration

1

Cleaning brush (B)

1

For G sensor

2

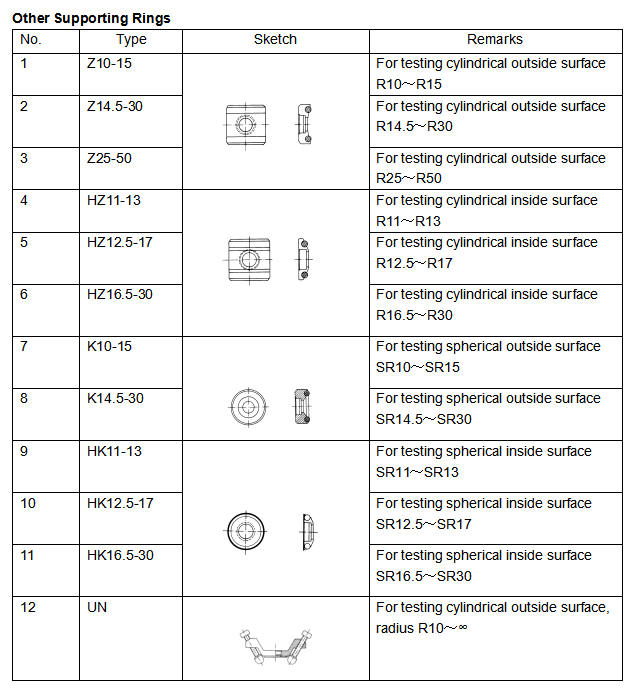

Other type of support rings



3

Other type of impact devices



4

Data-Pro software

1


5

Communication cable

1
